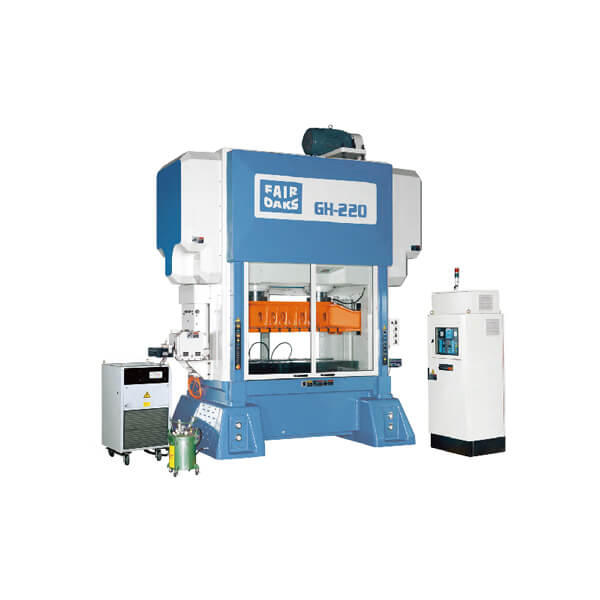

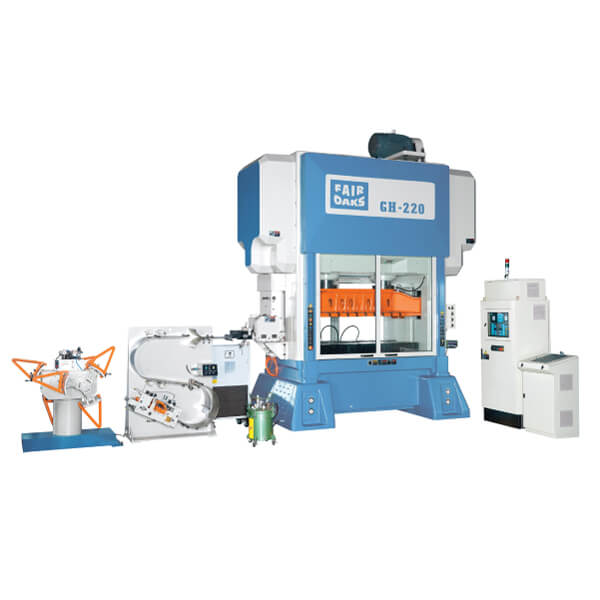

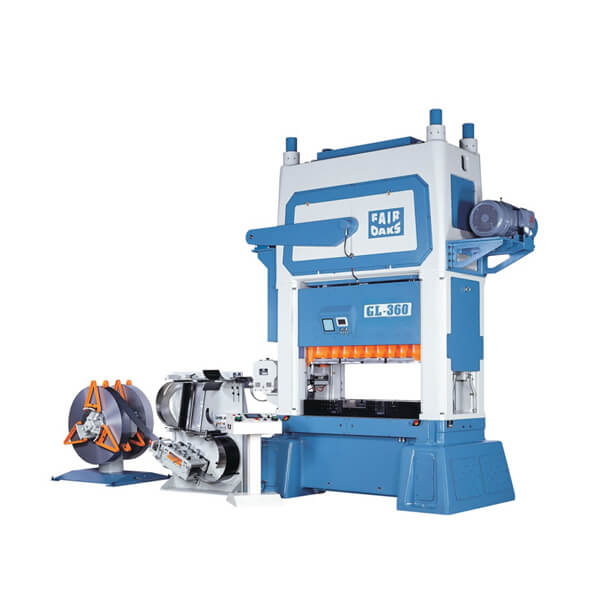

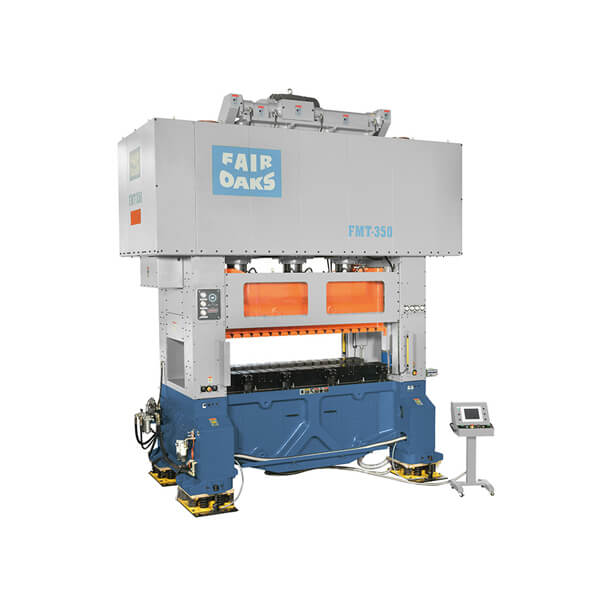

High Speed Precision Press Machine (Crank Type)

FRAME

• Manufactured from high tensile cast iron, stress relieved for maximum rigidity and long term accuracy.
• The frame structure is designed by means of "Computerized finite element analysis". It provides optimum design for frame strength and strain.

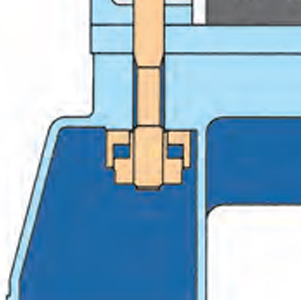

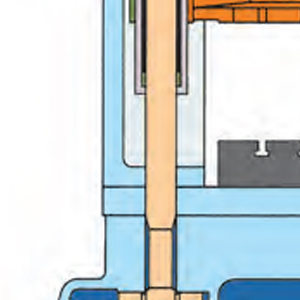

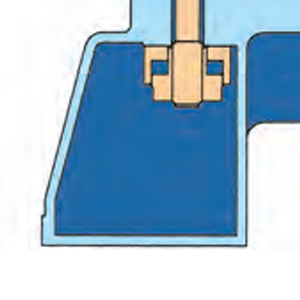

• The frame is tightened by tie-rods, incorporating with hydraulic preload on structure for giving added rigidity.

HIGH POSITIONING ACCURACY

• Sensitive separated type clutcn and brake assure high positioning accuracy and maximum safety guard.

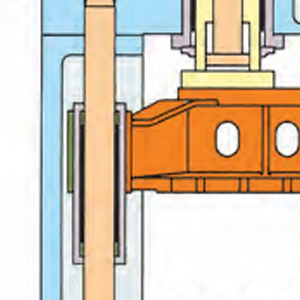

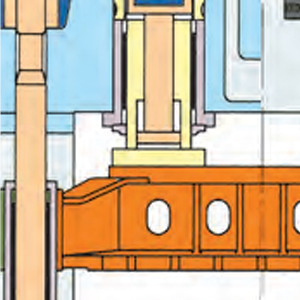

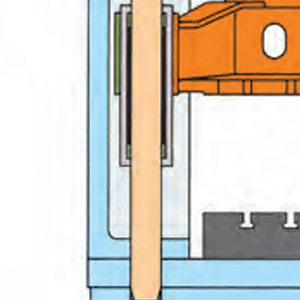

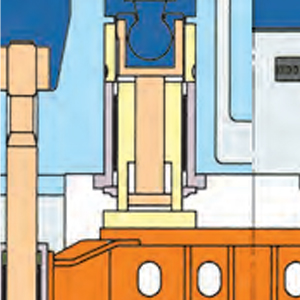

• Plunger guides & slide guides utilize clearance free axial bearings.
• Preloaded tie-rods employed on slide guide for high rigidity, incorporating with extended guide for highly dynamic and static accuracy, service life of punch dies can be greatly upgraded.

PRECISION MAIN SHAFT

• Manufactured from Nickel Chrome Molybedenum alloy steel, hardened and precision ground.

MINIMUM VIBRATION, MINIMUM NOISE

• Outstanding dynamic balancing design reduces vibration and noise to a minimum.

LUBRICATION SYSTEM

• Employs a forced lubrication with cooling system to minimize thermal strain of machine frame, upgrade stamping quality and extend service life of the machine. The lubrication system is provided with a pressure detection device.
