Servo leveler "S" Loop and Active type Uncoiler

FST-450/650 & FSV-450/65

FAIR OAKS's newly developed second-generation peripheral system is suitable for stamping materials with a thickness of 0.2 to 0.5mm silicon steel sheets, making it the best choice for producing new energy electric motors.

E-Catalog View

Product

Description

Specifications

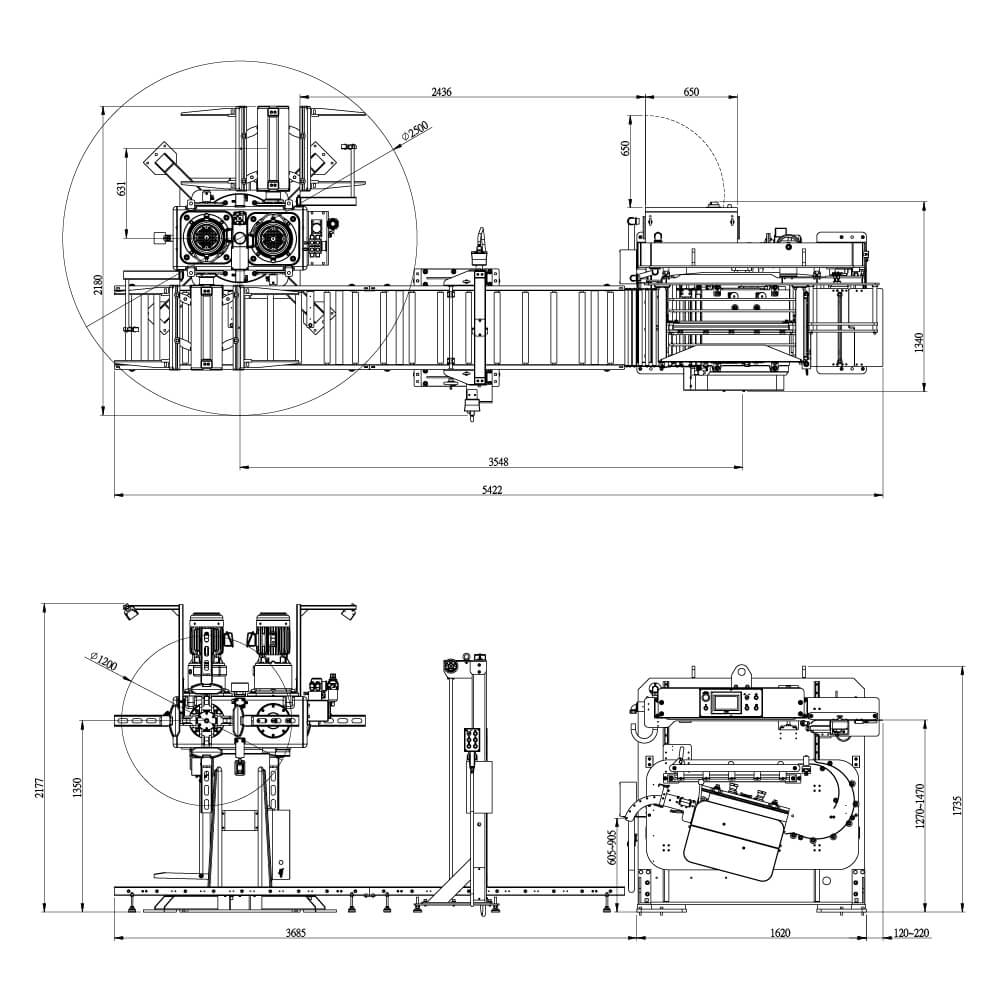

450 Servo leveler "S" Loop and Active type Uncoiler

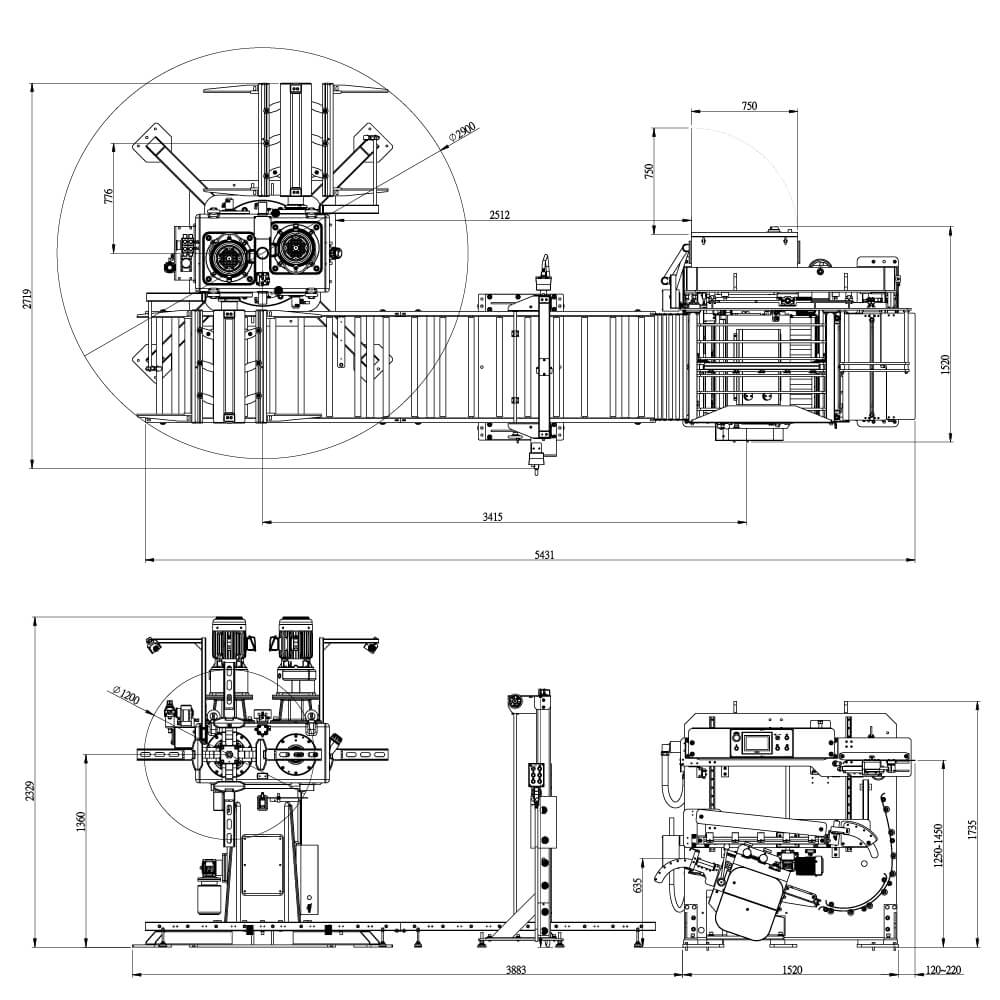

650 Servo leveler "S" Loop and Active type Uncoiler

FST-450/650
Servo leveler "S" Loop

Model	FST-450	FST-650
Width of material (mm)	100~450	100~650
Linear height (mm)	1270~1470	1250~1450
Thickness of material (mm)	0.2~1.0	0.2~0.5
Feed speed of leveller (m/min)	8~90
Driving motor (kw)	2

FSV-450/650
Active type Uncoiler

Model	FSV-450	FSV-650
Max coil width (mm)	100~450	100~650
Max coil weight (Kg)	3300*2	5000*2
Thickness of material (mm)	0.2~1.0	0.2~0.5
Head rotation way	Manual	Motor-driven
Max coil O.D. (mm)	1200
Expansion range(Min./Max.) (mm)	450~520
Variation range way	Hydraulic expansion

*If the actual requirements for the maximum outer diameter of the coil, material width, and material thickness exceed the specified specifications, please contact our factory. We can provide customized solutions according to your needs.

*This company continuously researches and improves product specifications and design features. If there are any changes to the above specifications, they will not be notified separately.
