High Speed Feeder (Gear Change Type)

GF-120/300/400/600

Standard Equipments:

1. Material lubrication device (With flow regulator).

2. Gear 4 pcs (Teeth numbers as specified).

3. Extended material support.

4. Material end sensor (DC24V NPN).

5. Pneumatic material clamping device.

E-Catalog View

Product

Description

Specifications

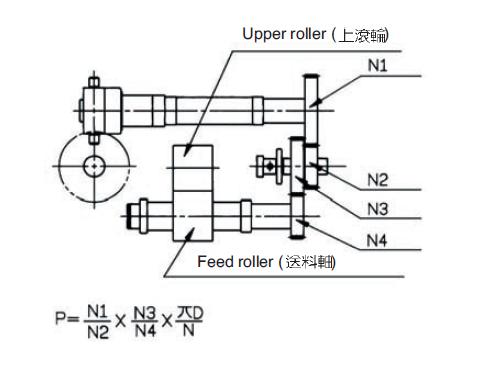

  • P=Feed pitch (mm)
  • N=Index numbers
  • N1=1st gear teeth number
  • N2=2nd gear teeth number
  • N3=3rd gear teeth number
  • N4=4th gear teeth number
  • D=Feed roller diameter(mm)


GF-120/300/400/600
High Speed Feeder (Gear Change Type)

Model GL-120 GL-300 GL-400 GL-600
Thickness of material (mm) 0.2~1.0 0.2~1.0 0.2~1.0 0.2~1.0
Width of materia (mm) 30~120 50~300 50~400 78~600
Feed roller dia (mm) Ø70 Ø70 Ø100 Ø120
Feed length (mm) 15~250/4~90 15~300 10~350 10~578
Index numbers 4/12 4 4 3
Feed angle 180° 180° 150° 180°
Release angle 135°~195° 135°~195° 110°~220° 110°~220°
Feed direction Left→Right
